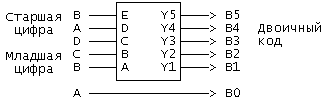

Преобразователь 6-битового двоично-десятичного кода в двоичный микросхемой 155ПР6
(184)
| |
В Х О Д Ы |
В Ы Х О Д Ы |
| Число |
E C D B A |
-G |
Y5 Y4 Y3 Y2 Y1 |
| 0-1 |
L L L L L |
L |
L L L L L |
| 2-3 |
L L L L H |
L |
L L L L H |
| 4-5 |
L L L H L |
L |
L L L H L |
| 6-7 |
L L L H H |
L |
L L L H H |
| 8-9 |
L L H L L |
L |
L L H L L |
| 10-11 |
L H L L L |
L |
L L H L H |
| 12-13 |
L H L L H |
L |
L L H H L |
| 14-15 |
L H L H L |
L |
L L H H H |
| 16-17 |
L H L H H |
L |
L H L L L |
| 18-19 |
L H H L L |
L |
L H L L H |
| 20-21 |
H L L L L |
L |
L H L H L |
| 22-23 |
H L L L H |
L |
L H L H H |
| 24-25 |
H L L H L |
L |
L H H L L |
| 26-27 |
H L L H H |
L |
L H H L H |
| 28-29 |
H L H L L |
L |
L H H H L |
| 30-31 |
H H L L L |
L |
L H H H H |
| 32-33 |
H H L L H |
L |
H L L L L |
| 34-35 |
H H L H L |
L |
H L L L H |
| 36-37 |
H H L H H |
L |
H L L H L |
| 38-39 |
H H H L L |
L |
H L L H H |
| X |
X X X X X |
H |
H H H H H |

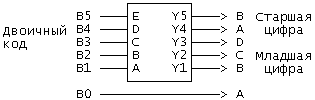

Преобразователь 6-битового двоичного кода в двоично-десятичный микросхемой
155ПР7 (185)
| |
В Х О Д Ы |
В Ы Х О Д Ы |
| Число |
E C D B A |
-G |
Y8 Y7 Y6 Y5 Y4 Y3 Y2 Y1 |
| 0-1 |
L L L L L |
L |
H H L L L
L L L |
| 2-3 |
L L L L H |
L |
H H L L L
L L H |
| 4-5 |
L L L H L |
L |
H H L L L
L H L |
| 6-7 |
L L L H H |
L |
H H L L L
L H H |
| 8-9 |
L L H L L |
L |
H H L L L
H L L |
| 10-11 |
L L H L H |
L |
H H L L H
L L L |
| 12-13 |
L L H H L |
L |
H H L L H
L L H |
| 14-15 |
L L H H H |
L |
H H L L H
L H L |
| 16-17 |
L H L L L |
L |
H H L L H
L H H |
| 18-19 |
L H L L H |
L |
H H L L H
H L L |
| 20-21 |
L H L H L |
L |
H H L H L
L L L |
| 22-23 |
L H L H H |
L |
H H L H L
L L H |
| 24-25 |
L H H L L |
L |
H H L H L
L H L |
| 26-27 |
L H H L H |
L |
H H L H L
L H H |
| 28-29 |
L H H H L |
L |
H H L H L
H L L |
| 30-31 |
L H H H H |
L |
H H L H H
L L L |
| 32-33 |
H L L L L |
L |
H H L H H
L L H |
| 34-35 |
H L L L H |
L |
H H L H H
L H L |
| 36-37 |
H L L H L |
L |
H H L H H
L H H |
| 38-39 |
H L L H H |
L |
H H L H H
H L L |
| 40-41 |
H L H L L |
L |
H H H L L
L L L |
| 42-43 |
H L H L H |
L |
H H H L L
L L H |
| 44-45 |
H L H H L |
L |
H H H L L
L H L |
| 46-47 |
H L H H H |
L |
H H H L L
L H H |
| 48-49 |
H H L L L |
L |
H H H L L
H L L |
| 50-51 |
H H L L H |
L |
H H H L H
L L L |
| 52-53 |
H H L H L |
L |
H H H L H
L L H |
| 54-55 |
H H L H H |
L |
H H H L H
L H L |
| 56-57 |
H H H L L |
L |
H H H L H
L H H |
| 58-59 |
H H H L H |
L |
H H H L H
H L L |
| 60-61 |
H H H H L |
L |
H H H H L
L L L |
| 62-63 |
H H H H H |
L |
H H H H L
L L H |
| X |
X X X X X |
H |
H H H H H
H H H |
| Параметры |
ПР6,ПР7 |
| Выходное напряжение лог.0, В |
-0.4 |
| Выходной ток лог. 0, мА |
12 |
| Входной ток лог. 0, мА |
1 |
| Входной ток лог. 1, мкА |
40 |
| Ток потребления, мА |
-110 |
| Время выборки, нс |
-62-99 |
|
